Unmanned Surface Vessels for defense operations


Oryx Series

In a contested environment, persistence changes everything. Engineered for maximum versatility, it delivers 360° surface and subsea situational awareness across ASW, ISR, and CUIP operations—extending coverage, fusing data, and accelerating decisions to protect personnel.

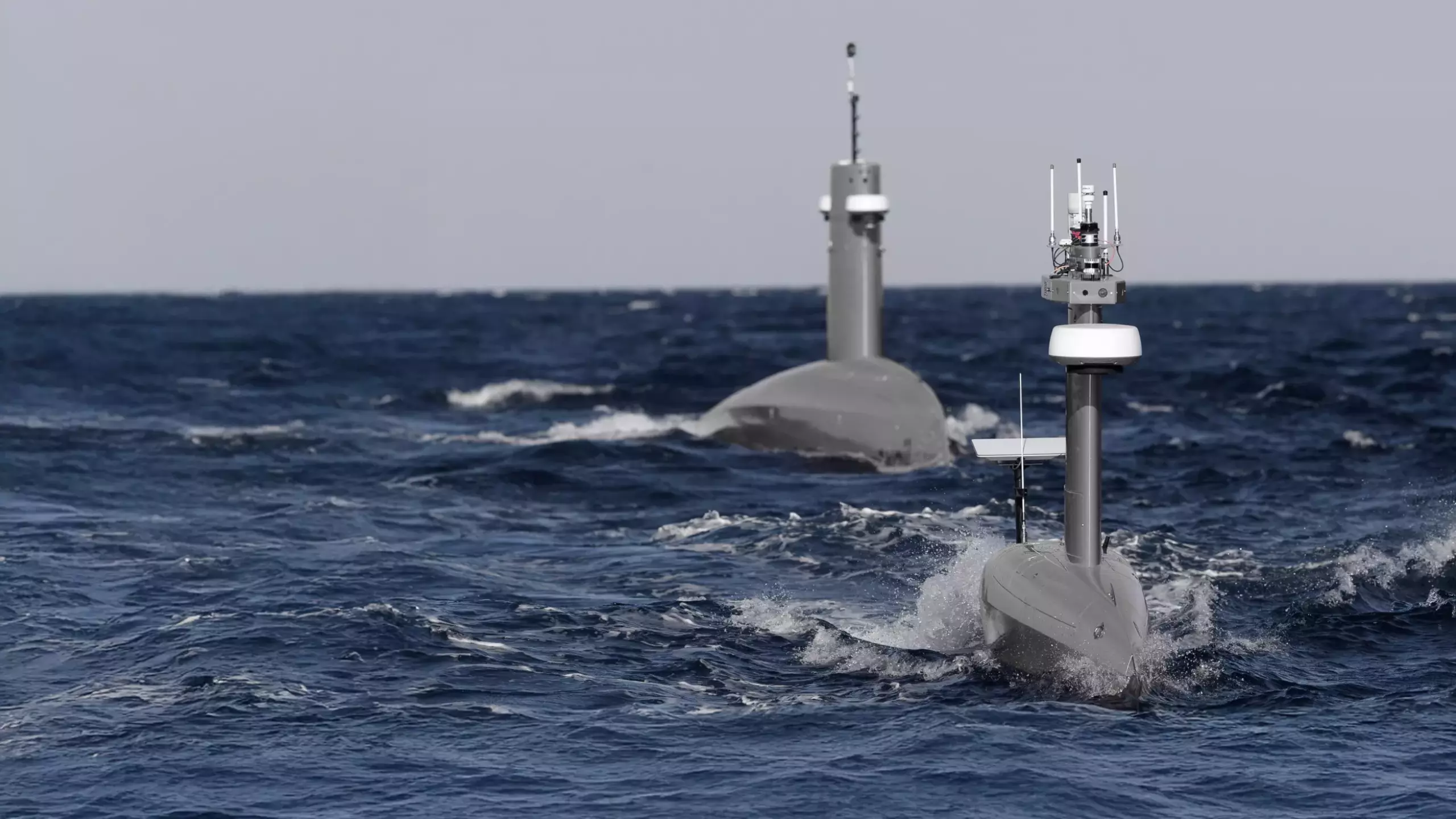

Drix o 16 drix h 8 hd banniere 2500x1406

Unmanned surface vessels (USVs)
in a military context

Unmanned Surface Vessel (USVs) play a strategic role in modern naval warfare by enabling the persistent capture of maritime information traffic—including surveillance, environmental, and situational data—across surface and subsurface domains.

A networked system of autonomous vehicles, modular mission payloads and unified C2 extends the surveillance reach of naval forces above, on and below the surface, enabling them to monitor larger areas and build a more comprehensive understanding of the maritime environment.



Oryx USVs, operational flexibility

Oryx USVs can carry sensors forward, remain on task 24/7 and operate as part of a wider naval force at a fraction of the cost and with minimal manpower
Navies can select the Oryx USV model, sensors, communications and shore or ship-based control arrangement suited to the mission.

Oryx USVs are integrated into the Neptis maritime surveillance system combining unmanned platforms, defense-grade payloads, and C2 software. The system extends operational reach and persistence while preserving high-value vessels and their crews for higher-priority missions.

Oryx H-8 Medium range USV

Oryx H-9 Long Range USV

Oryx O-16 Transoceanic range

Length

7.71 m

9 m

15.75 m

Displacement

1.6 t

2.1 t

10.5 t

Endurance*

Up to 10 days

Up to 20 days

Up to 30 days

Speed

< 14 kts

< 13 kts

< 16 kts

Fuel capacity

250 L

550 L

2300 L (Dual hybrid propulsion)

Range

1,000 NM


2,000 NM

3,500 NM

Towing / Deployment

Towing capabilities

SSS L&R and towing capabilities

ROTVs, ROV, UAV, AUV L&R

* Endurance depends on speed, gondola size, payload equipment and towing capabilities.

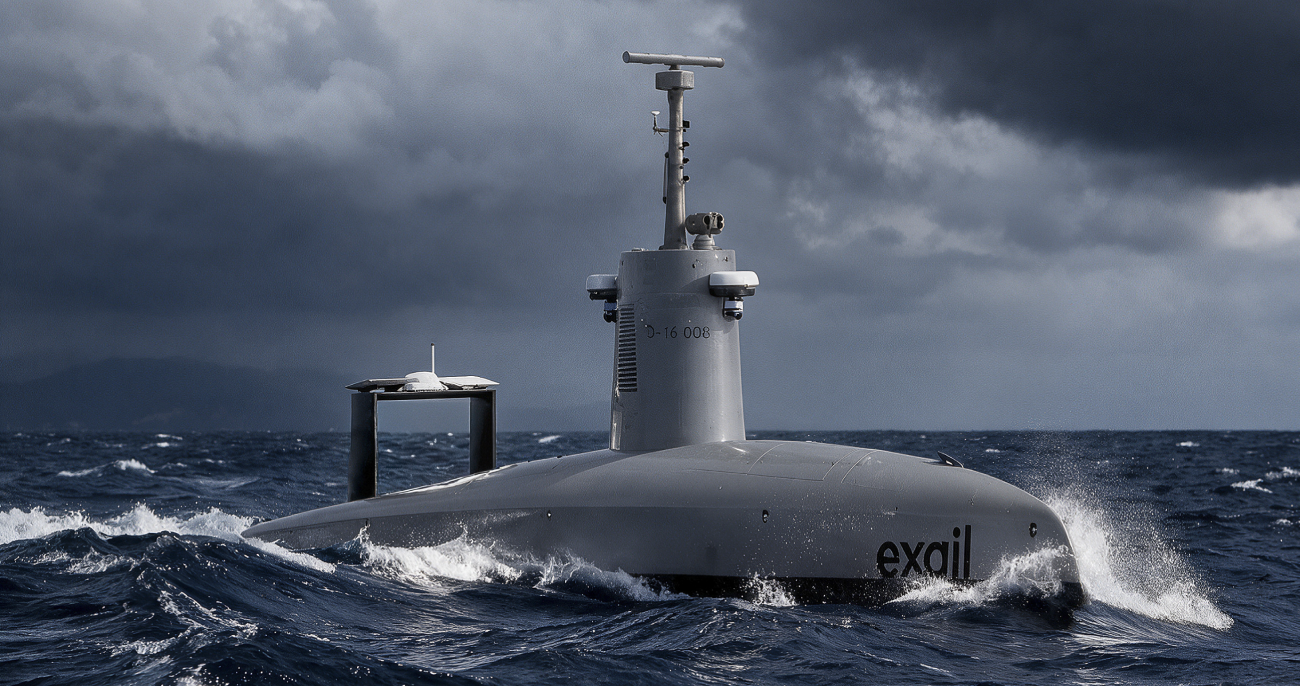

Image oryx

Military USV applications

The Oryx USV has been designed to meet the diverse operational needs of modern navies. Its adaptability makes it a valuable asset across Maritime Domain Awareness missions.

Exail drix ISR 01 thumbnail

Military hydrography

Unmatched maturity and reliability to military hydrographic surveys.

Asw

Anti-Submarine Warfare (ASW)

Continuous submarine detection and tracking over wide maritime areas, extending ASW coverage while significantly reducing exposure of crews.

Cuip

Critical Underwater Infrastructure Protection (CUIP)

Permanent maritime presence, reinforcing deterrence and enabling navies to secure vital infrastructures 24/7.

Isr

Intelligence, Surveillance & Reconnaissance (ISR)

Extending naval capabilities, reducing the need for manned patrols, and ensuring continuous, persistent 24/7 surveillance at sea.

Proven at sea

Build for naval operations
Building on the proven technological and operational heritage of Exail’s pioneering DriX USV, Oryx combines sea-proven naval architecture, hydrodynamic performance and autonomous capabilities with features purpose-built for defense missions, including tactical navigation, EMCON operations, military communication interfaces and defense-grade cybersecurity.

300,000 +

operational hours across civil and defense missions

1,500,000 +

NM of navigation by Exail USV

SS7

proven survivabilty and navigation capability

30 +

days of autonomous operations

Operational capabilities: meeting the full spectrum of naval needs

  • Low detectability: Minimal visual, radar, and acoustic detectability
  • Reliability & redundancy: extended and repeated operations.
  • Open architecture: integration of diverse military payloads and sensors
  • Deployment: from shore, port or mothership
  • Resilient navigation: maintain safe operation in degraded environments
  • Multi-drone coordination: surface relay or in direct support of subsea drones

Oryx: Defense innovation built on a sea-proven foundation

Engineered specifically for defense missions, Exail’s Oryx USV inherits the mature naval architecture, hydrodynamics, and autonomous capabilities of the field-proven DriX platform. Building on a heritage demonstrated across offshore energy, hydrography, and marine science, Oryx brings sea-tested reliability directly to military applications. Its foundational technology has already participated in high-profile defense operations and exercises—including with the US Navy (Task Force 59 and 4th Fleet), NATO (Task Force X and REPMUS), and the French Navy—ensuring rapid integration with minimal operational risk.

Read article

Integrated unmanned maritime surveillance system

Oryx USVs are integrated into the Neptis maritime surveillance system combining unmanned platforms, defense-grade payloads, and C2 software. The system extends operational reach and persistence while preserving high-value vessels and their crews for higher-priority missions.

Learn more about Neptis system
Neptis integrated maritime surveillance system

In service support

Oryx comes with a structured after-sales support offering designed to ensure maximum availability, security, and performance throughout the entire system lifecycle. From daily operations to long-term projects, Exail supports you with expertise, connectivity, and services, whenever and wherever needed.

The solution is built around a core of progressive annual subscriptions seamlessly integrated with a wide array of on-demand services—ranging from on-site technical assistance and expert training to remote operations and premium support—to ensure agile and tailored support for the success of all your projects.

FAQ

A military USV is an unmanned surface vessel designed to perform naval and defense missions without personnel onboard. Military USVs can enhance Maritime Domain Awareness (MDA) through persistent, wide-area surveillance, data collection and threat detection. Key missions includes: Intelligence, Surveillance & Reconnaissance (ISR), Anti-Submarine Warfare (ASW), Critical Underwater Infrastructure Protection (CUIP), Counter-Unmanned Aircraft System (C-UAS) operations, military hydrography and distributed maritime surveillance. Depending on their configuration, they can carry mission-specific sensors and payloads and operate independently or as part of a wider naval force.

Unmanned surface vessels enable persistent and distributed operations at sea while reducing the exposure of personnel and crewed naval assets. Their endurance, autonomy, low-observable design and ability to carry specialized sensors make them particularly suited to long-duration surveillance, intelligence gathering and operations in remote, hazardous or contested areas. Their low signature also enables stealthy, large-scale distributed deployment, increasing naval presence, resilience and coverage across wide maritime areas. Deployed as part of networks of surface, underwater and airborne assets, USVs can extend the reach and persistence of naval forces, while AI-driven insights accelerate rapid decision-making and turn collected data into actionable intelligence.

Military USVs combine autonomous navigation, remote supervision and mission-management systems to conduct naval operations with limited human intervention and without personnel onboard. They can integrate technologies such as Inertial Navigation Systems (INS), GNSS, radar, electro-optical sensors, satellite and radio communications, mission-specific payloads and command-and-control interfaces. Advanced military USVs can also incorporate resilient navigation, tactical communications and capabilities designed to support operations in degraded or contested environments.

While civil and military USVs share a technological foundation in autonomous navigation, remote supervision and sensor integration, they differ fundamentally in their operational purpose and mission requirements. Civil USVs such as DriX are primarily designed for applications including hydrography, ocean science and offshore energy operations. In contrast, military USVs such as Oryx are purpose-built for high-intensity naval and defense operations.
Building on Exail’s experience with DriX, Oryx combines high-performance navigation with advanced defense capabilities, including threat geolocation, seamless C4 systems integration, tactical mission supervision and collaborative multi-platform operations. Designed for secure and tactical environments, Oryx also incorporates military-grade communications, resilient GNSS/navigation capabilities and enhanced cybersecurity, including emergency data purging and scuttling capabilities to help prevent technology compromise.
