Optical modulation
Developing cutting-edge modulation solutions
Developing cutting-edge modulation solutions for specific applications, such as high-energy lasers, communication systems, or sensing devices, demands continuous advancements.
- Lithium niobate electro-optic modulators
- RF modulator drivers
- Modulators bias controllers
- ModBox systems
Unlocking the potential of optical modulation at Exail involves navigating a landscape of challenges. Essential objectives include high-speed modulation for efficient data transmission, precise modulation depth control, and minimizing signal distortion. Managing power consumption and ensuring stability across varied environmental conditions are equally critical. These challenges propel us to refine and innovate, meeting the dynamic demands of tomorrow's optical applications.
Pioneering precision & EFFICIENCY IN OPTICAL MODULATION for challenging applications
Definition and role of optical modulation in high-performance photonics
Optical modulation is the cornerstone of advanced fiber-based photonic systems, acting as the essential bridge between electronic command and light signals. Unlike standard telecommunications, where the focus is often on volume, Exail’s technology centers on the systematic and ultra-precise alteration of a light beam's properties—amplitude, phase, or polarization—to meet the requirements of high-power lasers, another demanding optical application in space, quantum and sensing.
At the heart of this process is Lithium Niobate (LiNbO3), a ferroelectric material renowned for its exceptional electro-optic properties. By leveraging Lithium Niobate modulation, we transform a continuous wave (CW) laser into a high-speed, high-fidelity data or pulse carrier. This technology is specifically engineered to excel in harsh environments, including space and defense, where maintaining high extinction ratios and low insertion loss is critical. As industries push toward more demanding photonic architectures, the stability and bandwidth of LiNbO3 modulators become the primary drivers for precision and reliability.
Types of optical modulators: from electro-optic to magneto-optic technologies
The landscape of optical modulation is diverse, with each technology offering unique advantages for specific spectral ranges and speeds:
Leveraging the Pockels effect, these are the gold standard for high-speed applications. Based on crystals like Lithium Niobate (LiNbO3).
These utilize the photoelastic effect to create a refractive index grating via sound waves. They are favored for laser intensity control, frequency shifting, and Q-switching in industrial laser systems.
Also known as Mach-Zehnder modulators, split input light into two interferometer arms. By applying a voltage to one or both arms to induce a phase shift (typically via the electro-optic effect), the light interferes either constructively or destructively at the output. This allows for precise optical power modulation with high contrast, making them indispensable for complex pulse shaping.
These advanced PIC-based solutions consolidate multiple optical functions onto a single chip. They are engineered to deliver multi-gigahertz frequencies with exceptionally low driving voltages (VPi), making them ideal for high-density, energy-efficient fibered systems and sensing networks.
Utilizing the Faraday effect, these components rotate the polarization of light under a magnetic field, often used in specialized optical isolation and sensing configurations.
Slower but highly versatile, these are used for spatial light modulation and phase control in adaptive optics.
Applications of optical modulation in different industries
The versatility of photonic modulation solutions allows them to serve as the "engine" for a wide spectrum of critical and demanding industries:
Next-Gen Telecommunications
Historically the backbone of fiber-optic networks, telecommunication has evolved into high-stakes environments. This includes sophisticated Free-Space Optical (FSO) communications—bridging Earth-to-Satellite, Aircraft-to-Satellite, and Inter-satellite links—as well as Quantum Key Distribution (QKD) for ultra-secure, unhackable encryption.
Fiber Optic Sensing (FOG & DTS)
High-bandwidth modulation is the core enabler for Distributed Acoustic Sensing (DAS) and Temperature Sensing (DTS). Notably, it is the fundamental component for Fiber Optic Gyroscopes (FOG); our integrated optical sensing chips are the "heart" of Exail’s world-leading inertial navigation systems, ensuring unmatched precision in navigation.
Space & Communication
Beyond Earth, optical modulators are deployed in satellite inter-link communications (LISL) and deep-space missions. Their ability to withstand radiation and extreme temperature gradients makes LiNbO3 the material of choice for reliable space-grade photonic links.
LIDAR & High-Power Laser and Seeding
In the realm of high-power lasers, modulators are used for precise pulse picking and shaping. They are also used in Pound-Drever-Hall (PDH) techniques for frequency stabilization. For FMCW LIDAR, high-speed phase modulation provides the high-resolution spatial data necessary for long-range detection and autonomous navigation in complex environments.
Quantum Technologies
Quantum Information Science relies on the extreme agility of optical modulators to generate single-photon pulses and manage complex quantum states. Whether for Quantum Key Distribution (QKD), atom cooling/atom manipulation, or quantum computing, our modulators provide the low-noise interference required for these delicate architectures.
Lithium niobate electro-optic modulators

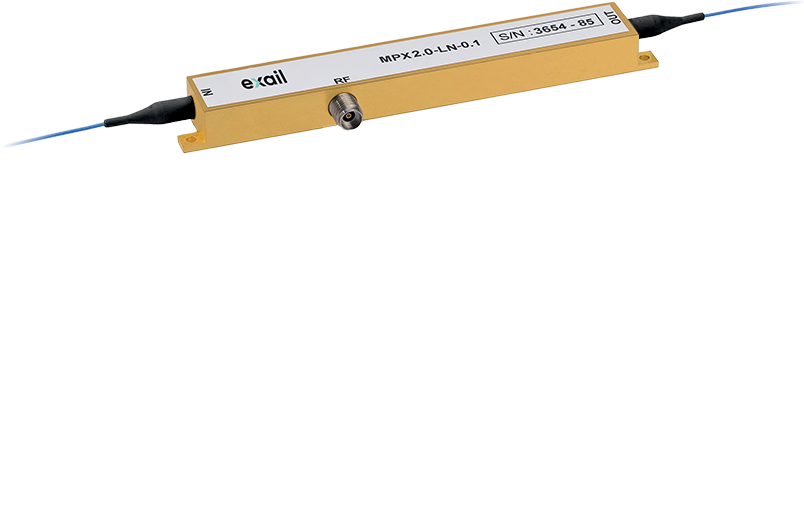

Exail pioneers precision and efficiency in optical modulation, specializing in cutting-edge lithium niobate (LiNbO₃) modulators. With advanced technology and innovation, our modulators redefine high-speed optical signal modulation for lasers, quantum systems, and optical communications.
Explore our intensity modulators, ensuring unmatched stability across operational conditions, and phase modulators with high photo-refractive thresholds, both spanning low frequencies to 40 GHz.
Learn more
RF modulator drivers

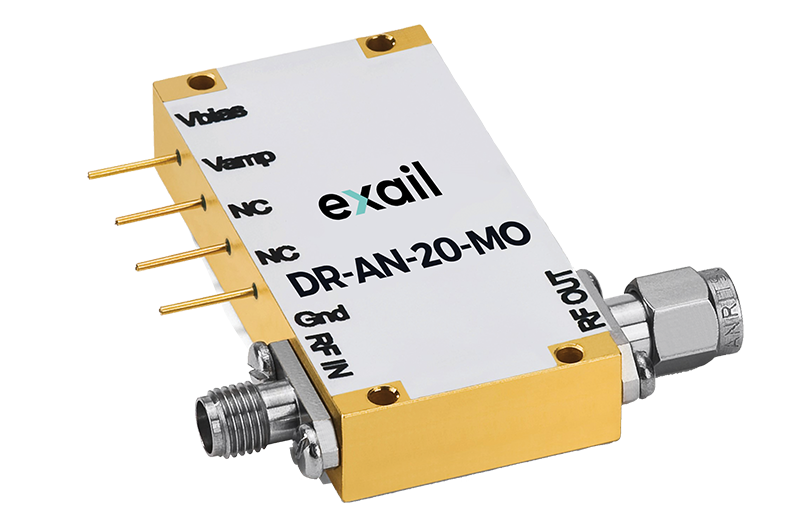

Elevate your optical modulation capabilities with Exail's cutting-edge RF modulator drivers. Designed for precision in amplifying electrical signals, our drivers are crafted with GaAs technology and a distributed amplifier topology, ensuring optimal conditions for driving optical modulators. AC-coupled and excluding continuous signal transmission, these drivers prioritize performance and safety.
Seamlessly integrated with Exail modulators, our drivers offer ease of use, reliability, and efficient heat dissipation. Transform your modulation setup with Exail's dedicated focus on delivering top-tier RF modulator drivers for unparalleled performance.
Learn more
Modulators bias controllers

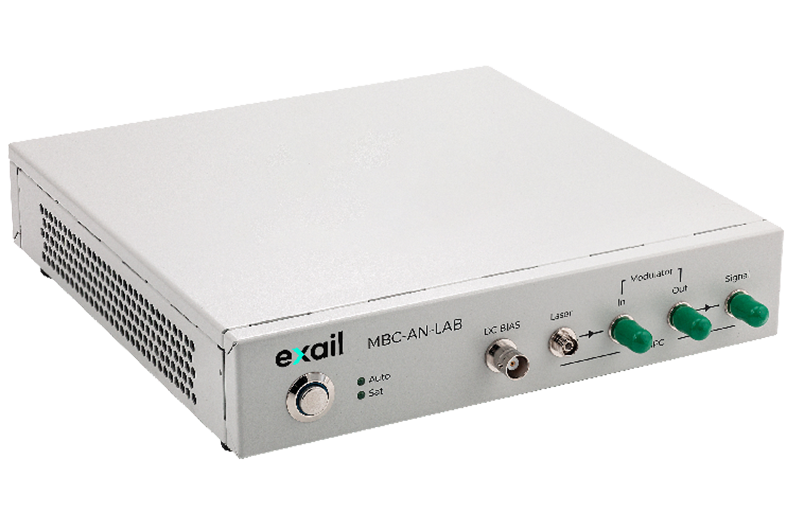

Exail's Modulator Bias Controllers (MBC) offer advanced solutions for optimizing intensity modulators performance. These controllers stand-out in providing precise bias voltage to select and stabilize the modulator's operating point, ensuring consistent and stable conditions over time and temperature variations. In contrast to manual adjustments, Exail's MBCs are automated bench-top instruments, eliminating the need for constant monitoring and readjustment.
The MBCs enhance the efficiency of Mach-Zehnder interferometer modulators, making them ideal for various applications demanding high performance and operational stability.
Learn more
ModBox systems
Fusion of photonics, RF & hyper-frequency, electronics, and software technologies, ModBox represents the pinnacle of the Exail's expertise. The company masters the entire LiNbO3 modulator chain, from chip design to packaging, selecting the best modulators for optimum performance (low insertion loss, high extinction ratio, high optical output, wide bandwidth, and more).
Exail's customizable ModBox systems, designed for external modulation, cater to diverse needs, from high-speed telecommunication modulation schemes like (D)QPSK, PAM, DPSK, NRZ to sub-nanosecond optical pulses spanning 780 nm to 2000 nm. Its expertise in photonics, RF, hyper-frequency, electronics, and software allows Exail to guide customers through the entire process, from selection and definition to procurement, installation, and configuration, for optimal ModBox performance.
Learn more
FAQ
Optical modulation is the process of manipulating the properties of a light wave—typically from a laser—to carry information. By varying the amplitude, phase, frequency, or polarization of the light carrier, data is encoded into optical signals. This is achieved by using external modulators.
The modulation technique directly determines the bandwidth efficiency and data rate. Advanced methods like Quadrature Amplitude Modulation (QAM) allow more bits to be transmitted per symbol compared to simple On-Off Keying (OOK). As modulation formats become more complex, they enable Terabit-per-second speeds, though they require a higher Signal-to-Noise Ratio (SNR).
High-power handling in optical modulation faces three primary hurdles: thermal management, material degradation, and nonlinear effects. High-intensity beams can cause localized heating or "optical damage" to the modulator crystal.
Future trends focus on Thin-Film Lithium Niobate (TFLN) and Silicon Photonics for ultra-compact, green efficiency. We are seeing a shift toward total symbiosis between electronics and photonics (PIC), co-designing semiconductors with optical circuits. By marrying these with micro-optics, Exail creates multi-functional integrated modules—smarter, high-bandwidth optical engines that redefine next-gen connectivity.
