Digital MZ Modulators Bias Controller
Continuously Tunable Modulator Bias Controller

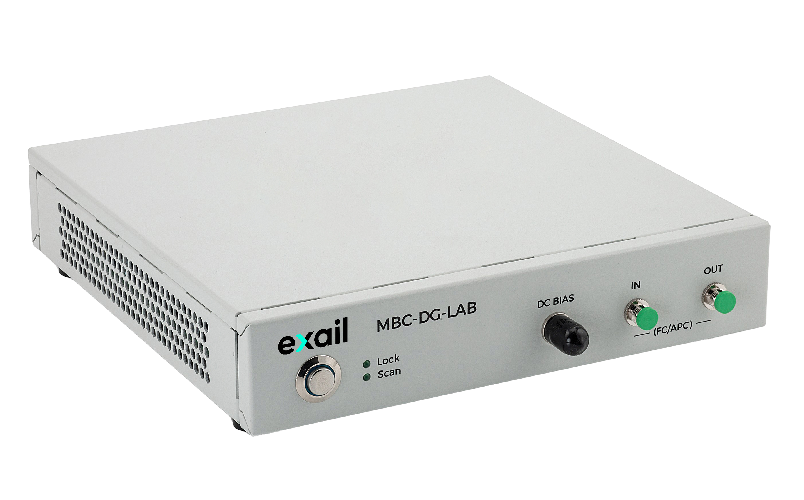

The MBC-DG-LAB is an automatic bias controller specially designed to lock the operating point of LiNbO3 Mach-Zehnder modulators and ensure a stable operation over time and environmental conditions.
It allows operation of the controlled intensity modulator at any point of its transfer function and thus can be used for a large variety of applications including any telecom modulation schemes, such as NRZ, DPSK, RZ,..
The MBC-LAB benefits of an auto-set operation for the MIN, MAX, QUAD± modes resulting in a simplified use.
Discover our MBCs for delivery within 2 to 4 weeks
Features
- Auto-set bias points (MIN, MAX, QUAD ±)
- Control of any bias points from modulator transfer function curve
- Continuous tuning of the operating point
- USB remote control
- LiNbO3, InP, GaAs modulators
- Digital modulation schemes NRZ, RZ, DPSK,…
- Pulse applications
- Analog applications
- Operating wavelength: from 760 nm up to 2200 nm
- Locking accuracy @QUAD: 90 ± 0.5 degree
- Extinction ratio at MIN mode: 50 ± 0.05 dB
